Lamp Controls [Tab 31]

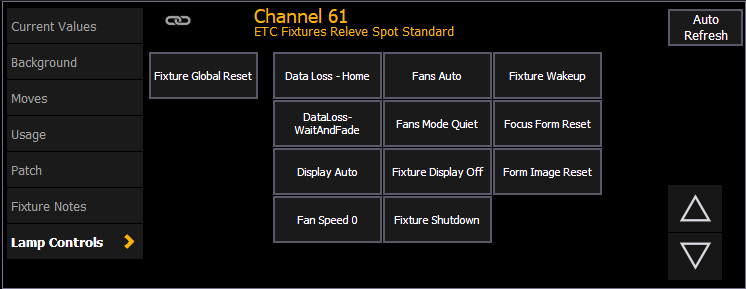

Lamp Controls ([Tab] [3][1]) allow you to execute control functions of selected fixtures such as calibrate, douse lamp, strike lamp and reset. Each fixture type has its own set of lamp control options which are available to you when you select the fixture from Live and press the {Lamp Ctrls} softkey. This information is also available Using [About].

  • [1] [1] [Enter] {Lamp Ctrls}
  • [1] [1] [Enter] [About] {Lamp Controls}

If the channel is a conventional (intensity-only) fixture, no control options will be displayed. When the selected channel is an automated fixture, options specific to the fixture type will display for use. Available RDM functions will also display here.

Pressing any of these control options will affect the selected channel after a confirmation.
